Vitrified Bond Diamond & CBN Grinding Wheels

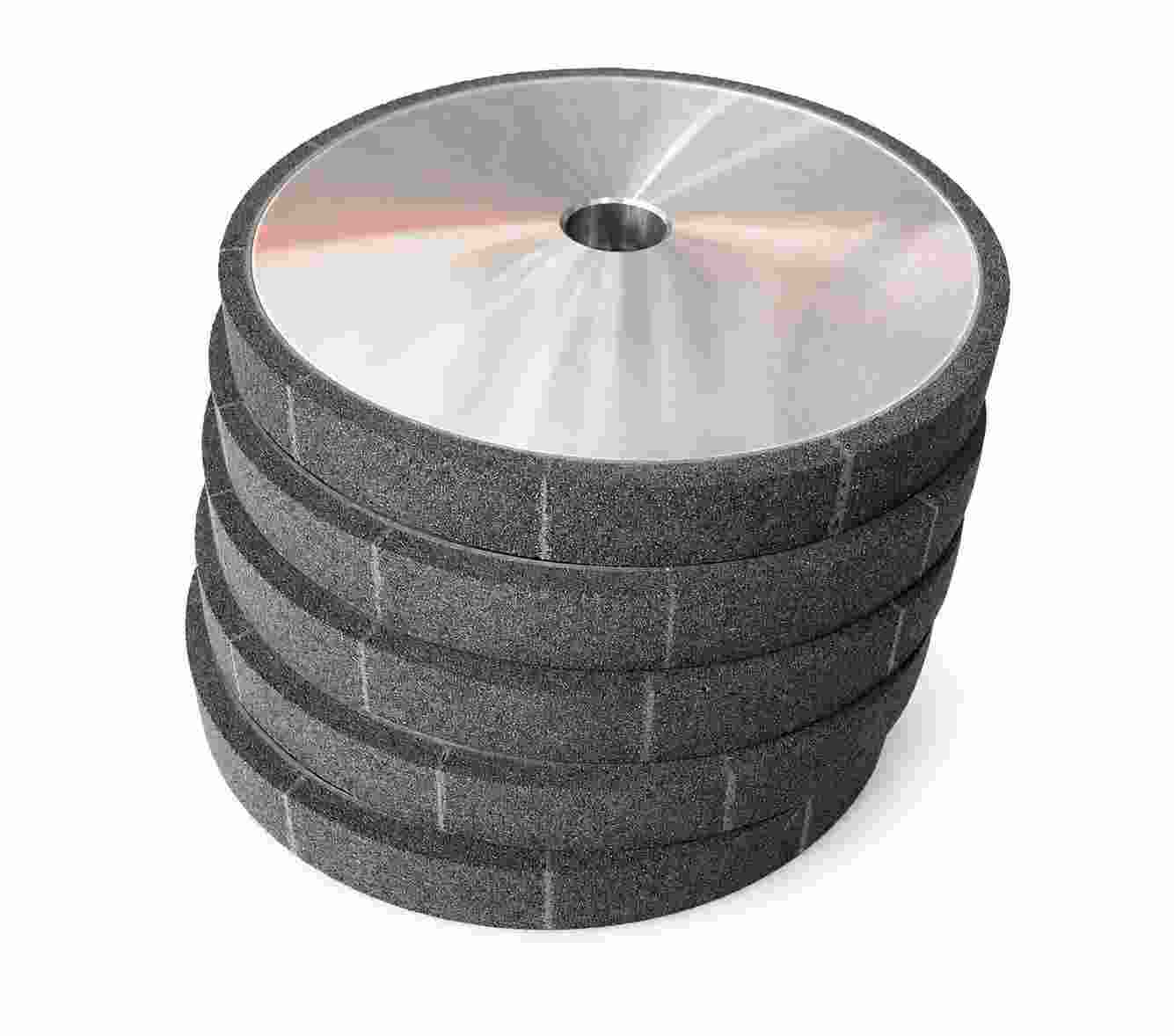

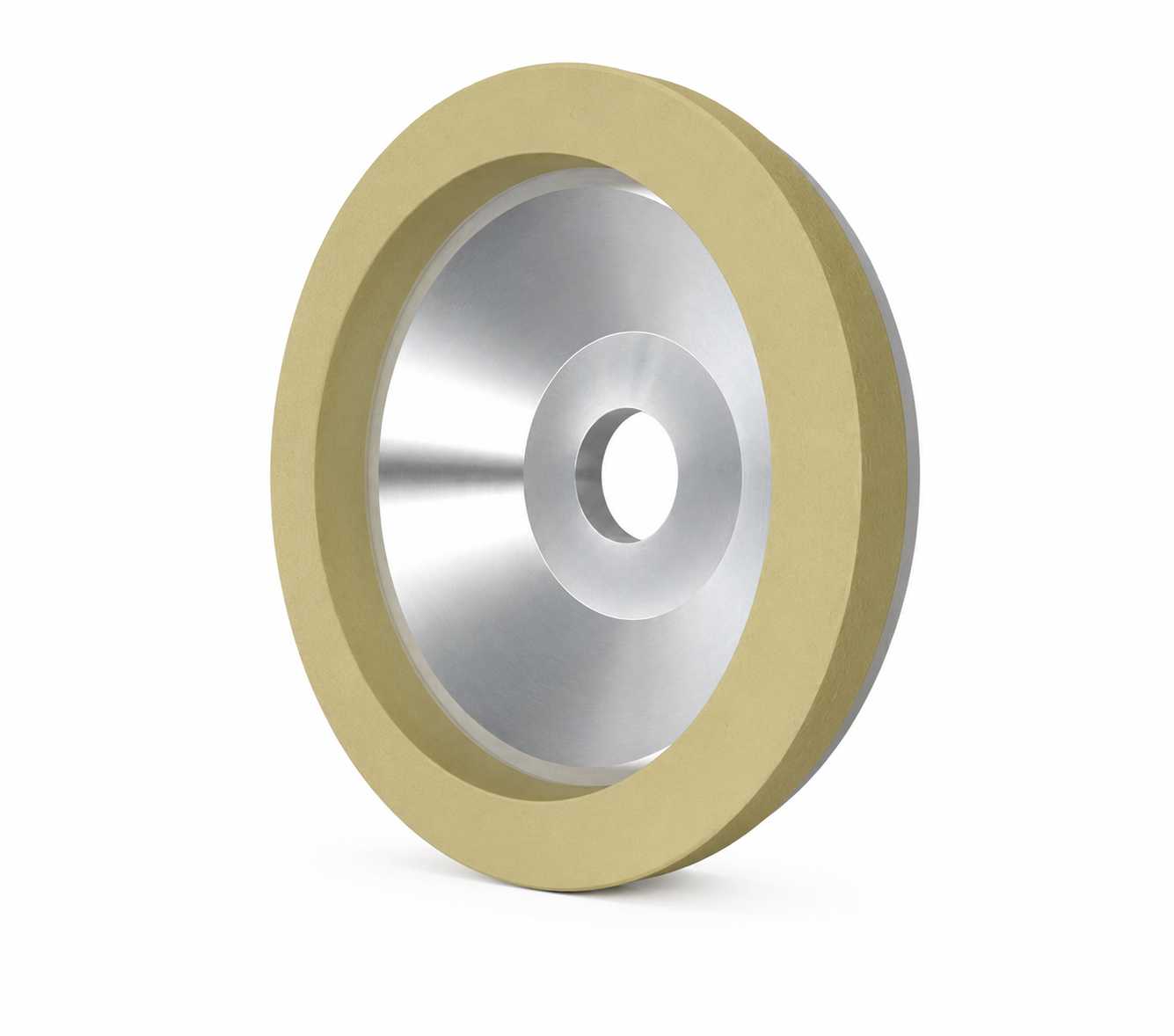

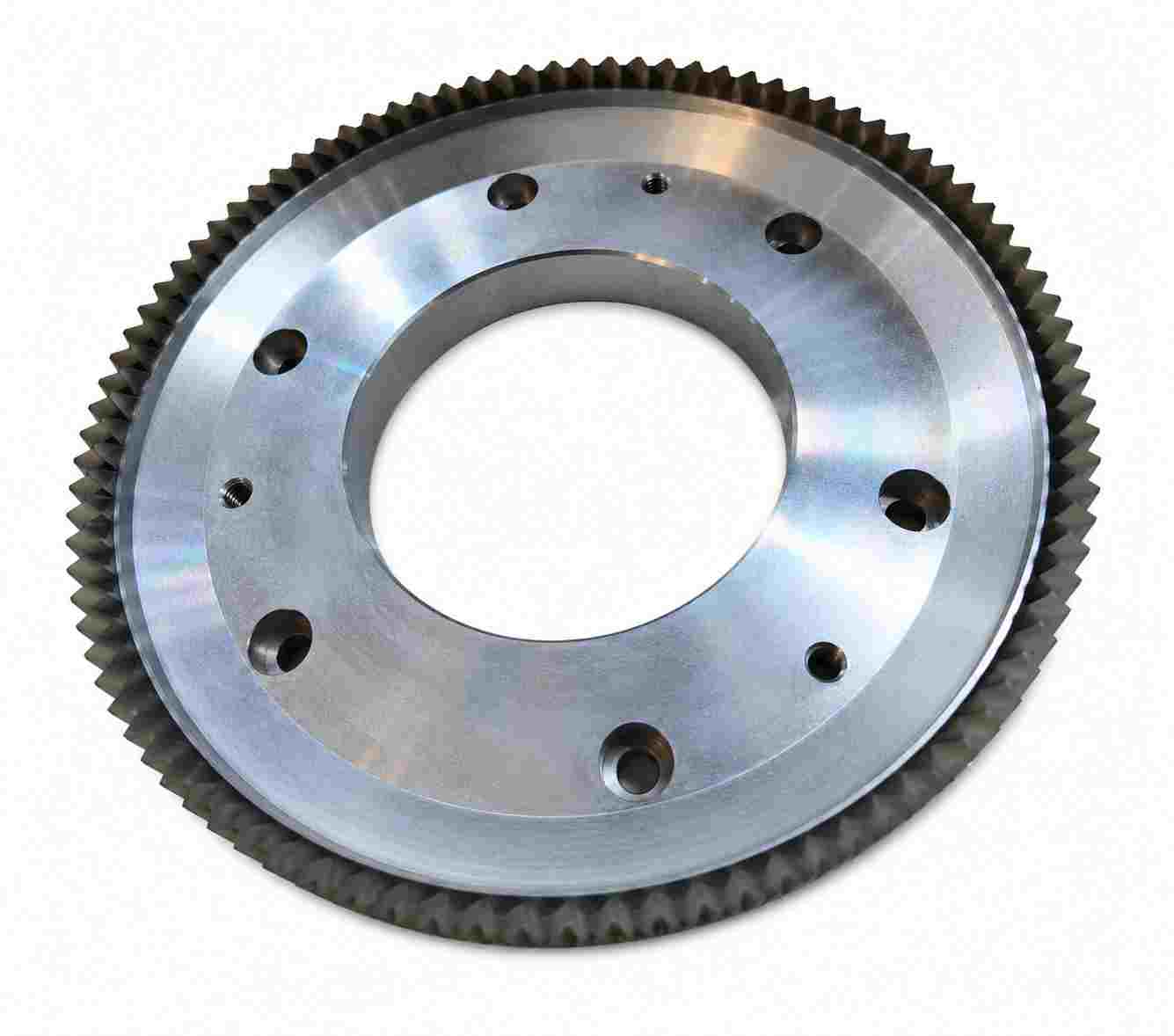

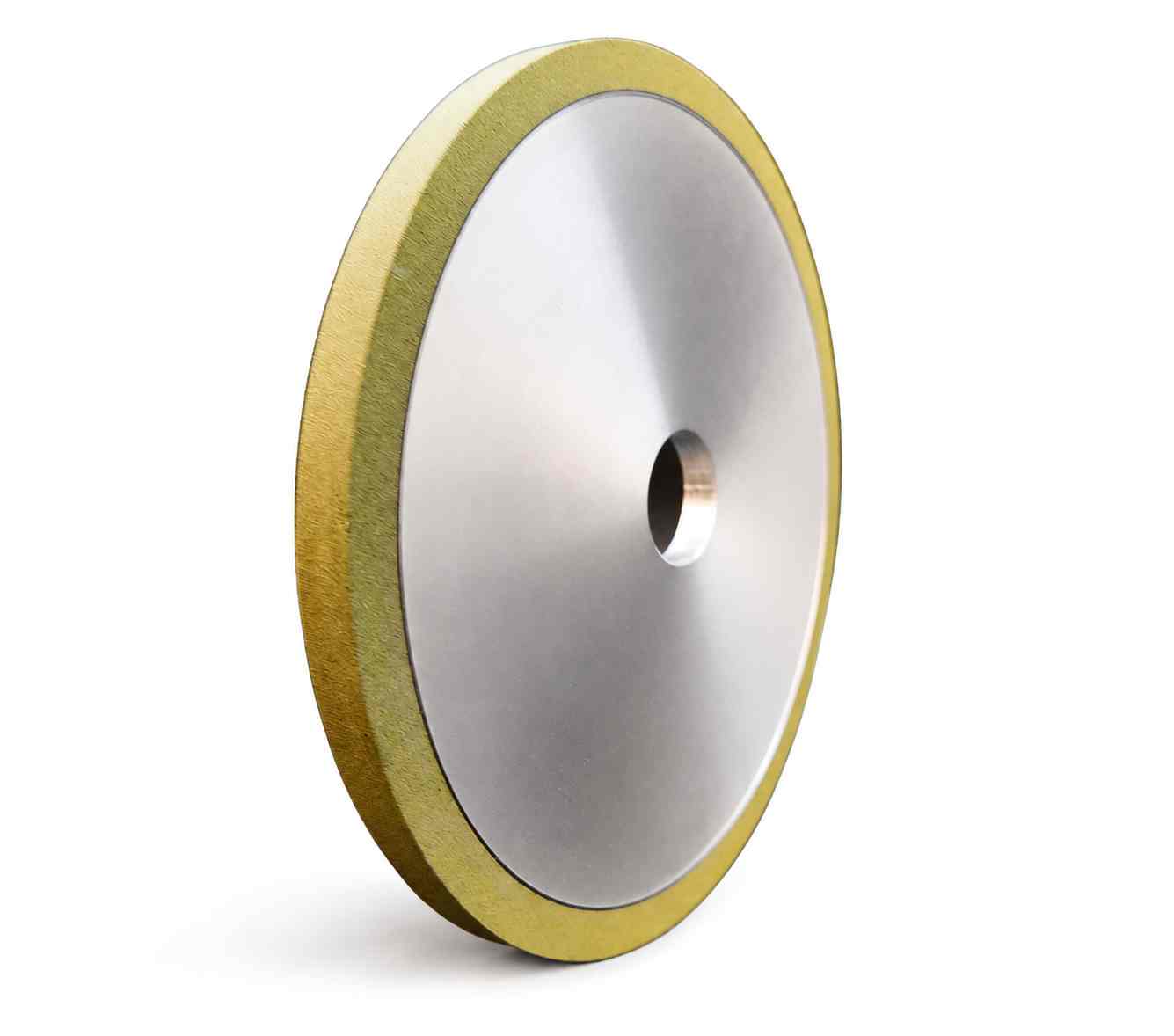

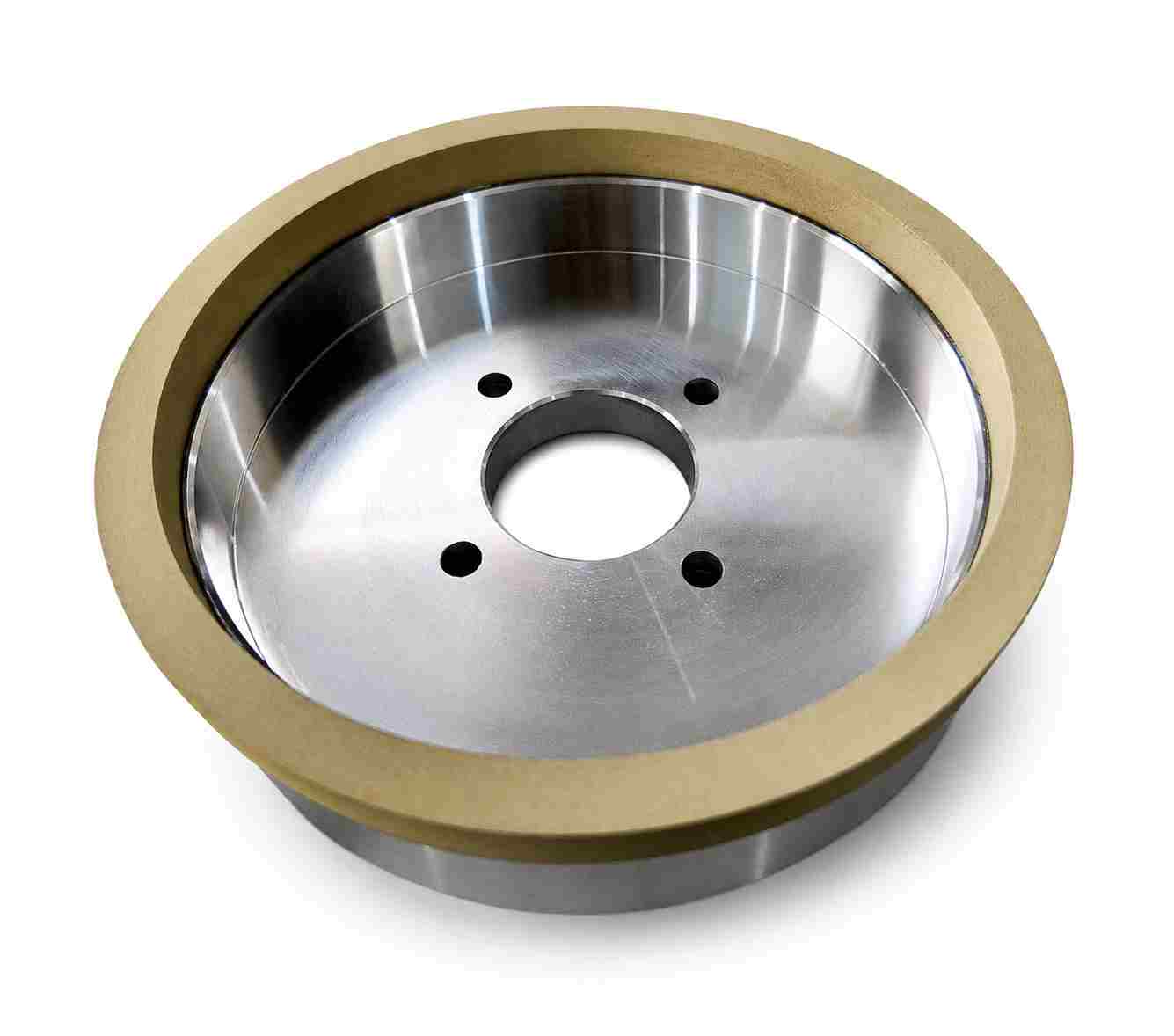

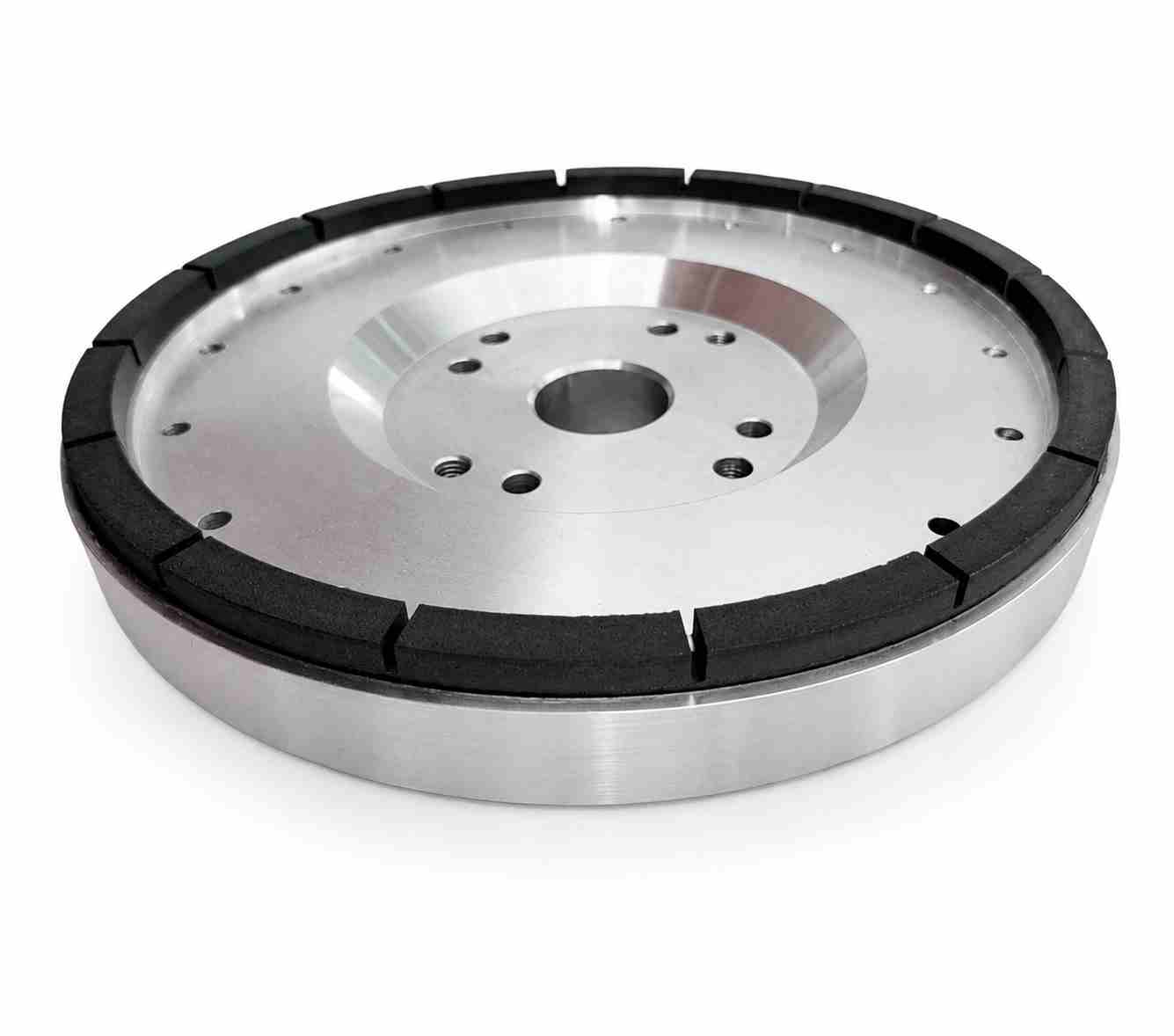

Vitrified bond diamond grinding wheel

Vitrified bond diamond and CBN grinding wheels offer high rigidity, excellent shape Vitrified bond diamond and CBN grinding wheels use a rigid ceramic-based bond to deliver high grinding accuracy, stable wheel geometry and consistent performance. Their controlled bond structure makes them suitable for demanding precision grinding operations where dimensional stability and repeatable results are required.

Get a Quote Download

Description

Vitrified diamond and CBN grinding wheels are designed for high-precision, high-efficiency grinding. Diamond wheels are ideal for carbide, ceramics, glass, and other hard brittle materials, while CBN wheels are widely used for hardened steel, high-speed steel, and superalloys. With excellent shape retention, stable performance, and a long service life, they help improve surface quality and reduce production costs.

100+ Export Countries
100+ Industrial Applications
OEM/ODM Custom Wheel Support

Bond Features:

High rigidity and excellent form retention
Good heat resistance and thermal stability
Porous structure for effective cooling
High grinding accuracy and consistency
Easy dressing and profile correction
Suitable for high-speed precision grinding

Get a Quote

Application:

Vitrified bond grinding wheels are ideal for high-precision and automated grinding processes requiring excellent dimensional stability, efficient coolant access and consistent grinding performance.

- * Bearings and bearing components
- * Gears and transmission parts
- * Camshafts and crankshafts
- * Hardened steel and high-speed steel tools
- * Carbide and technical ceramics
- * Internal, cylindrical, surface and profile grinding

Get a Quote

Specifications:

Dimensions
D		T		H	X	W	Grit
(mm)	Inch"	(mm)	Inch"	H	X	W	Grit
50–1000	2"–39.5"	2–50.8	0.08–2"	TO YOUR REQUEST	2–38mm	2–38mm	2–38mm
Any non-standard size and grit can be customized. Please provide the required size or drawing.

General Diamond CBN Grinding Wheels Drawings

1A1
3A1
14A1
1A8
1A1R
2A2
4A2
4AA2

How To Choose The Right Diamond Grinding Wheel?

1. What material will you grind? (Material and hardness)
2. What grinding process will the wheel be used for? (OD, ID, surface, profile, cutting, etc.)
3. What wheel shape and size do you need? (Shape, diameter, thickness, bore size)
4. What machine are you using? (Machine type and speed)
5. What performance do you focus on most? (Finish, accuracy, efficiency, or wheel life)
