Resin Bond Diamond & CBN Grinding Wheels

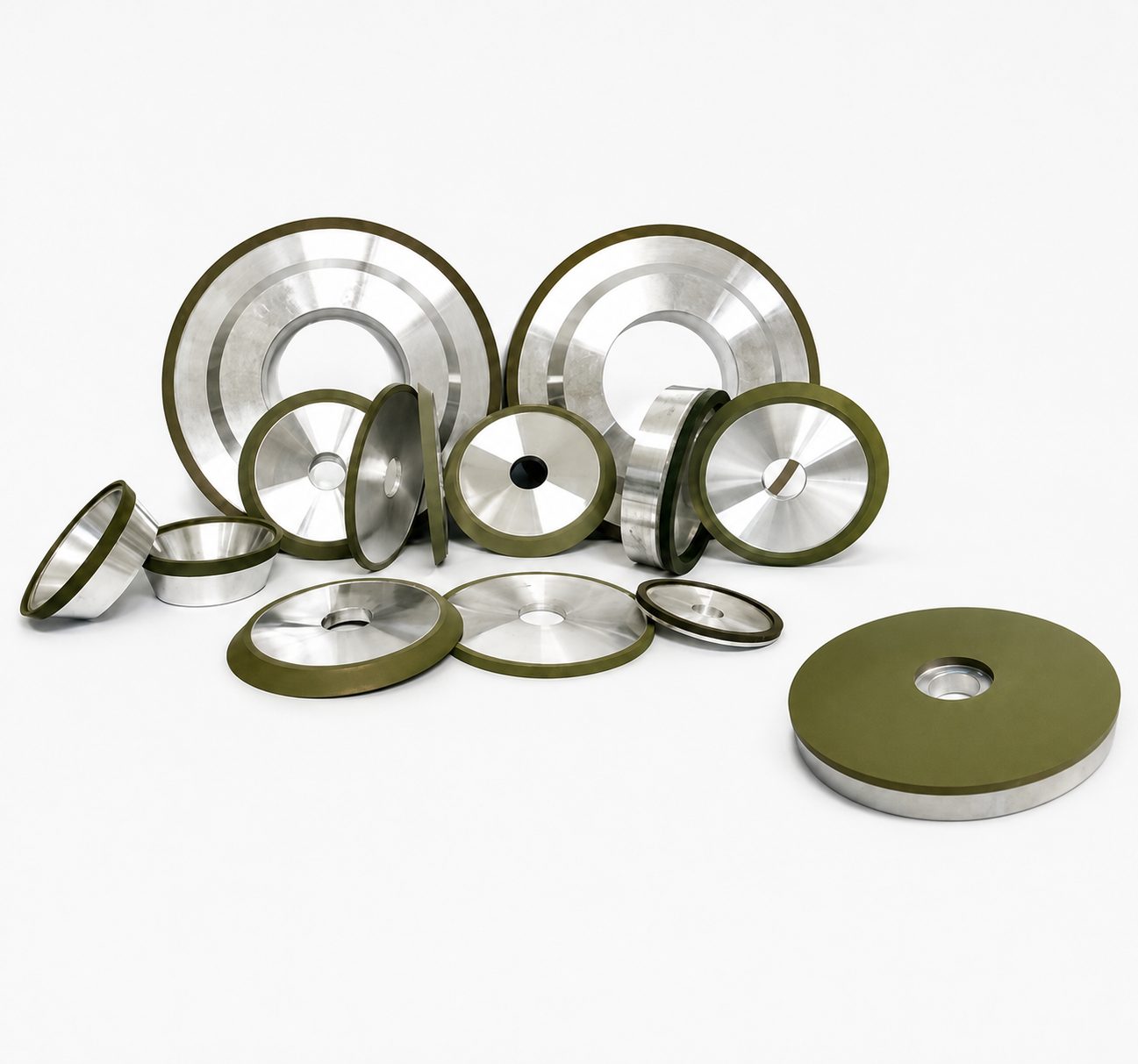

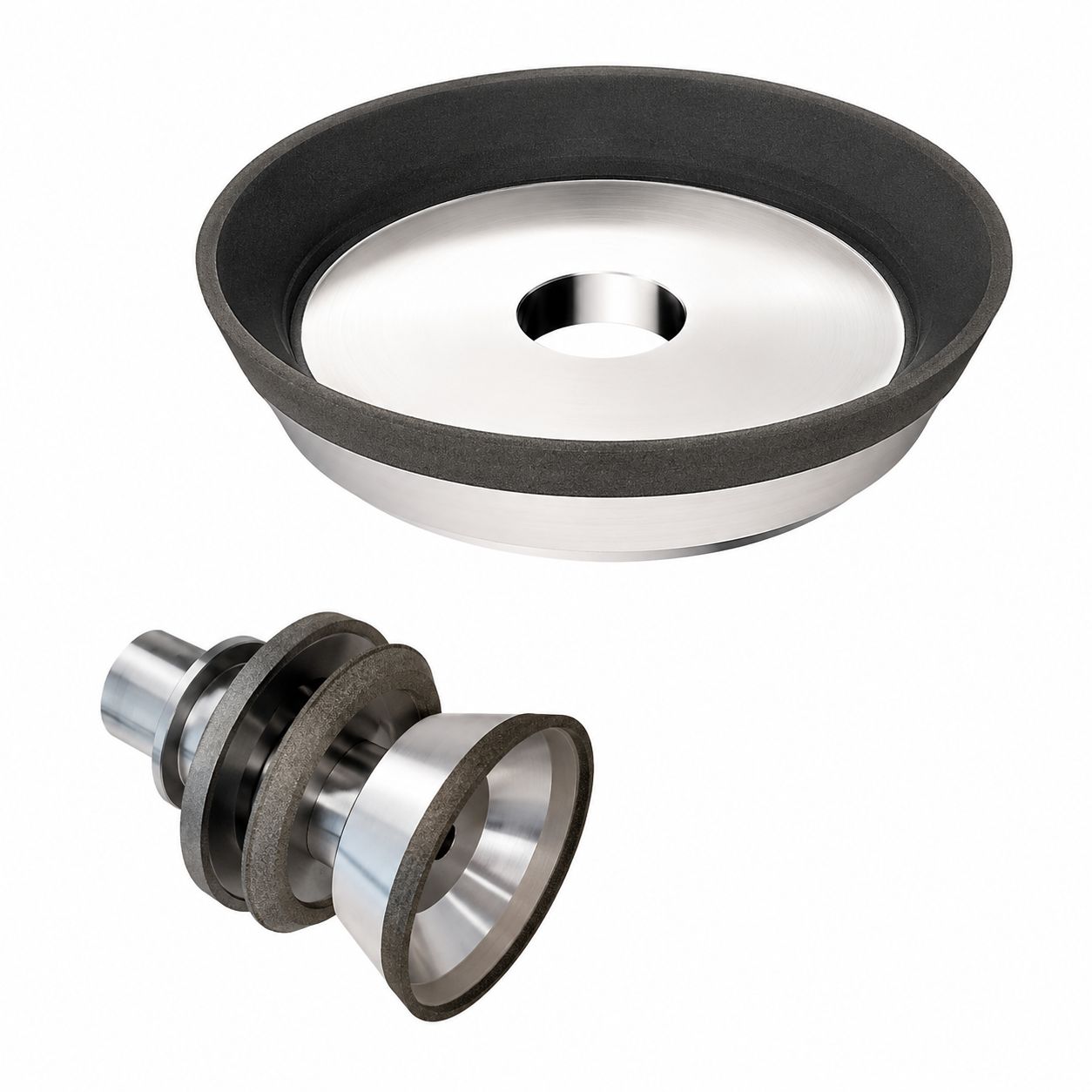

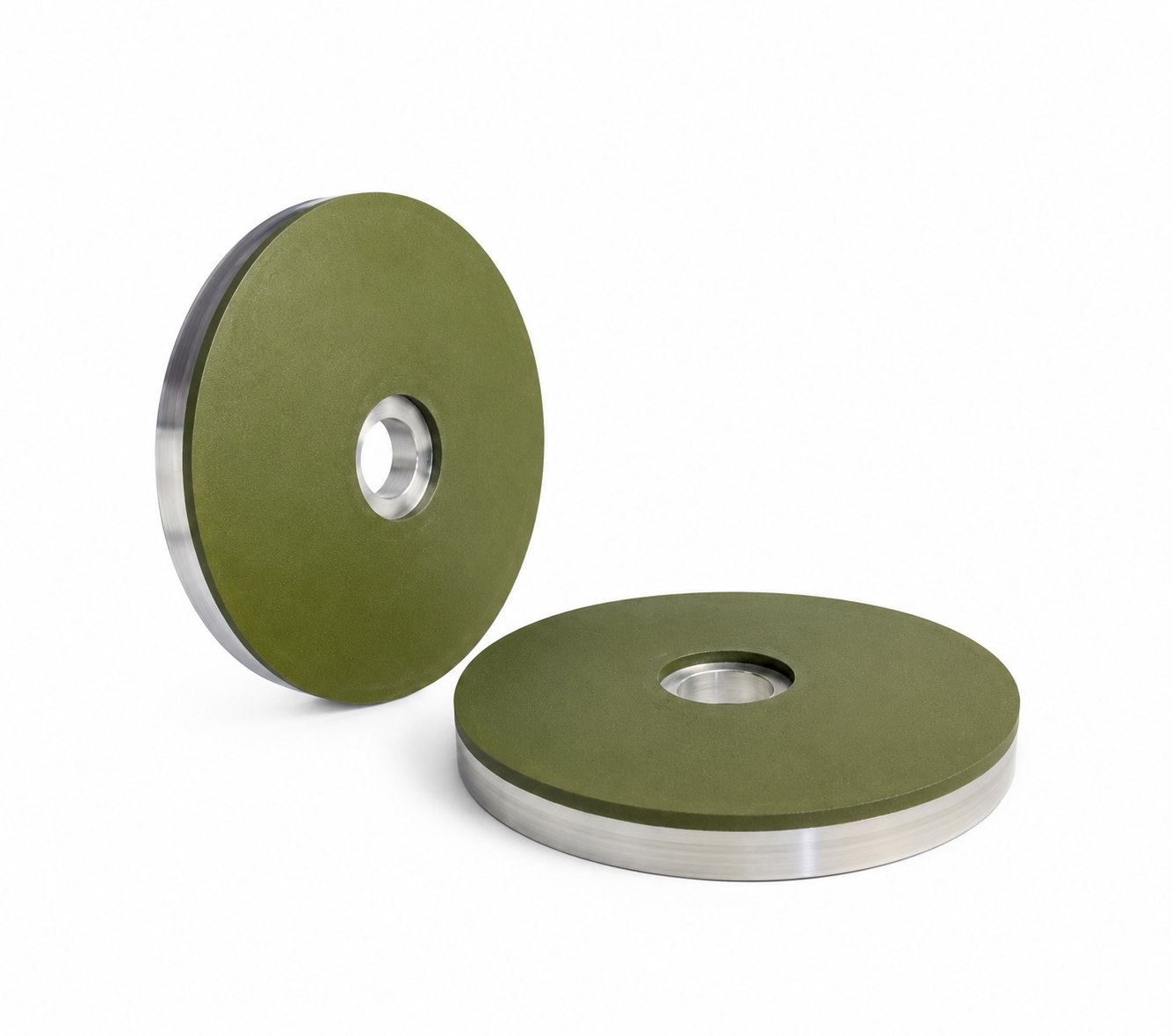

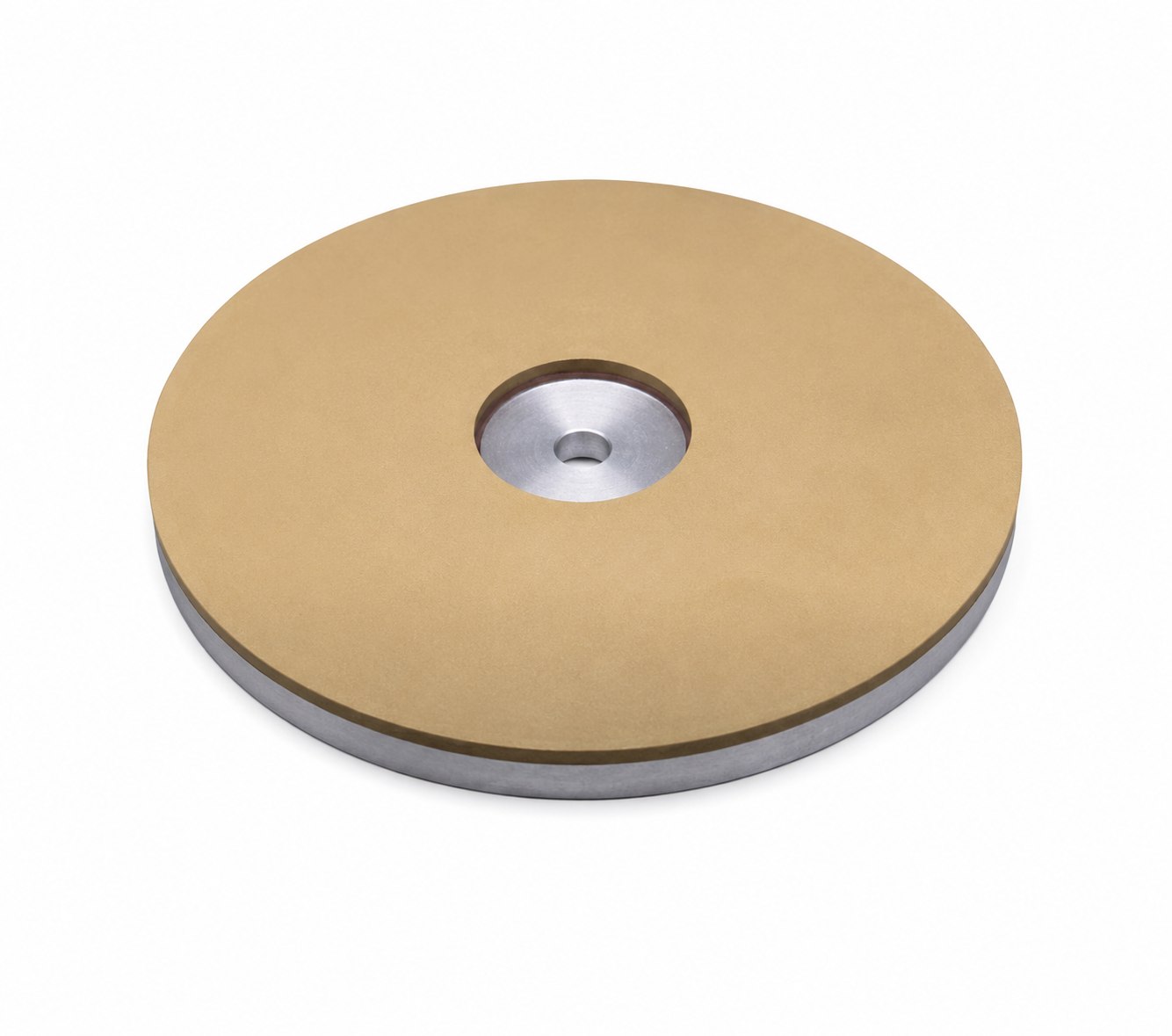

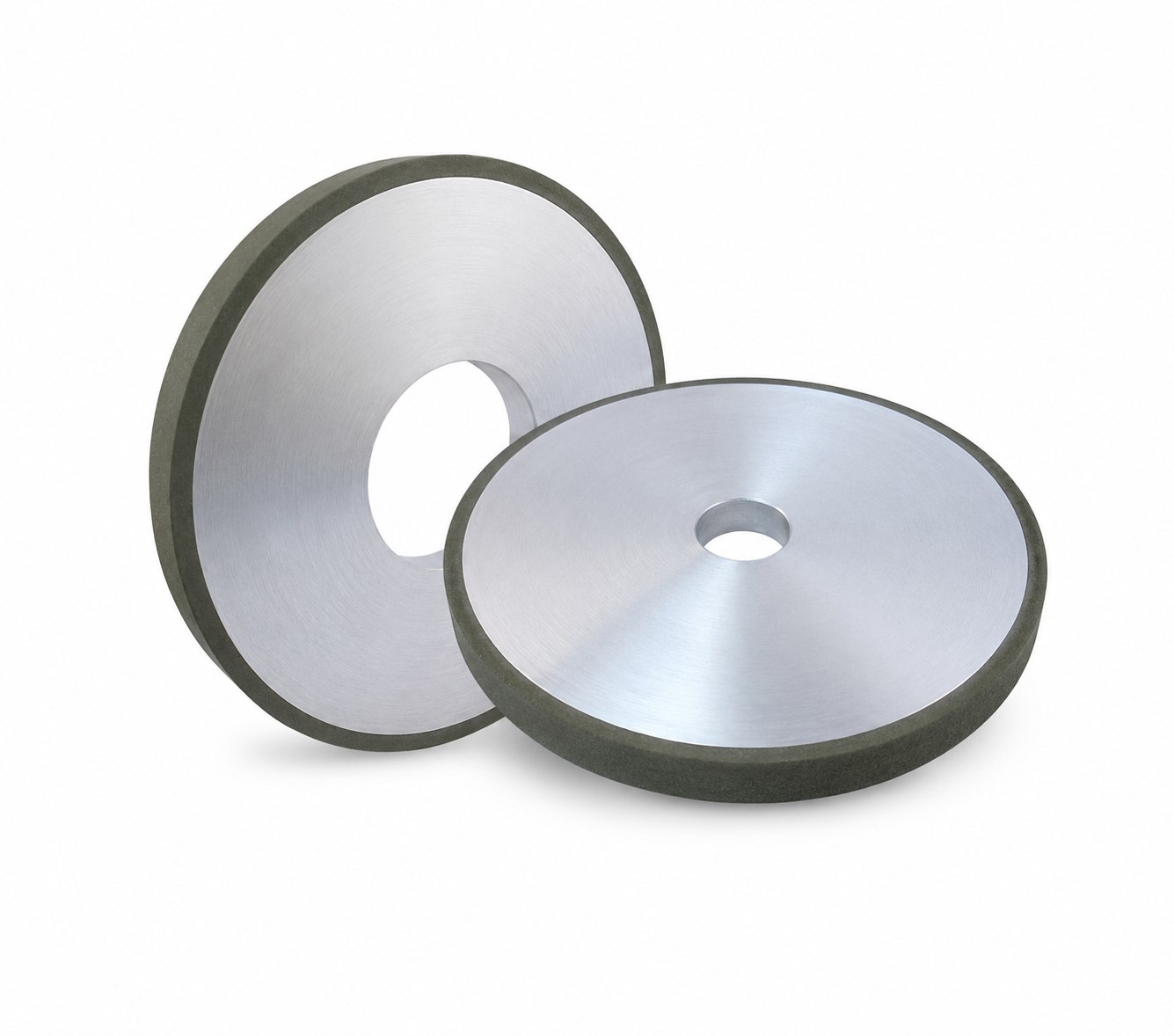

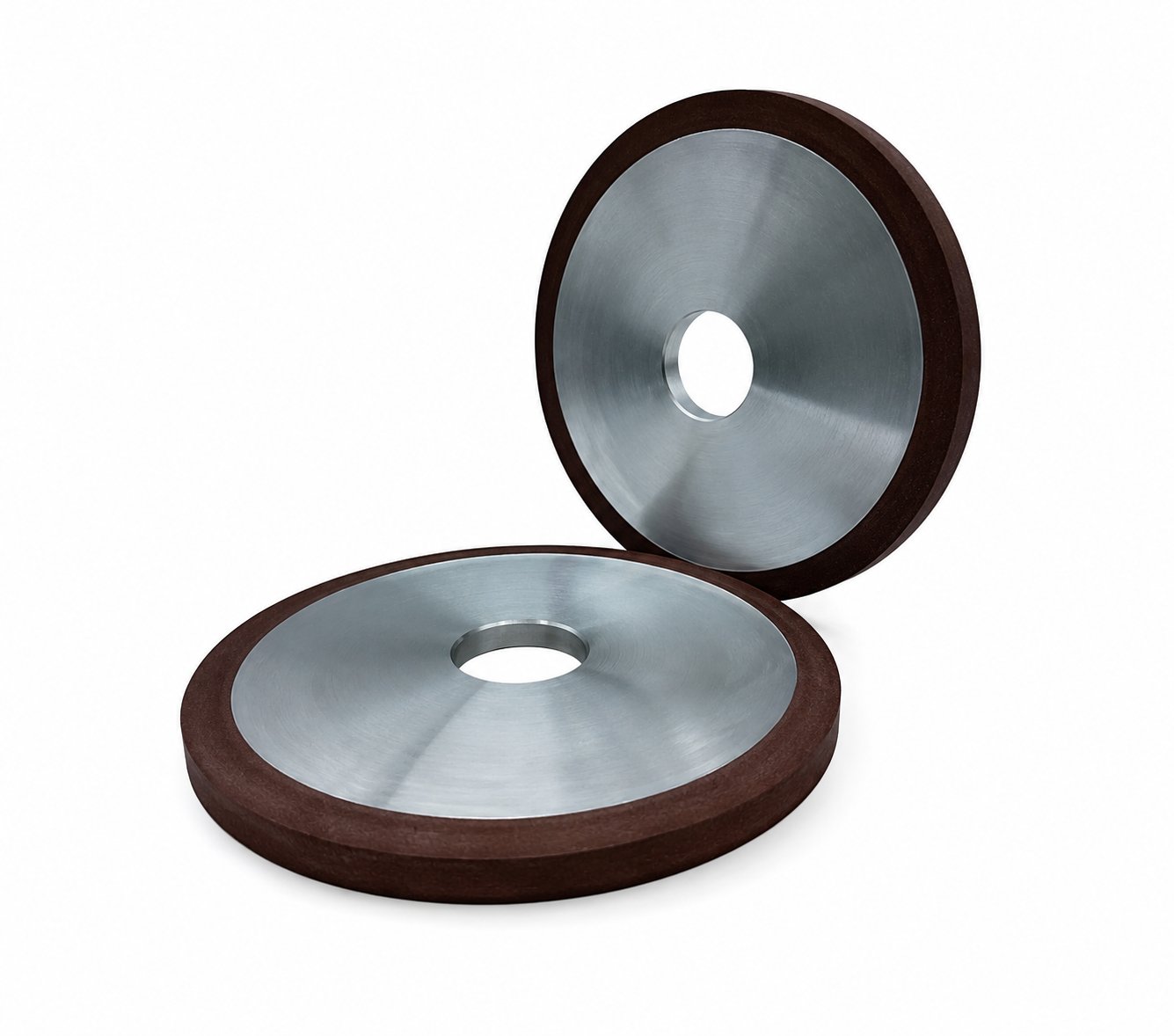

Resin Bond Diamond Grinding Wheels

Resin bond diamond and CBN grinding wheels are versatile superabrasive tools designed for precision grinding, sharpening and finishing. Diamond wheels are mainly used for carbide, ceramics, glass and other non-ferrous or non-metallic materials, while CBN wheels are suitable for hardened steel, high-speed steel and other ferrous materials.

Get a Quote Download

Description

Aurelion resin bond grinding wheels are manufactured with premium diamond or CBN abrasives and high-performance resin bonds. The flexible bond structure provides good self-sharpening ability, stable material removal and reduced grinding resistance.

100+ Export Countries
100+ Industrial Applications
OEM/ODM Custom Wheel Support

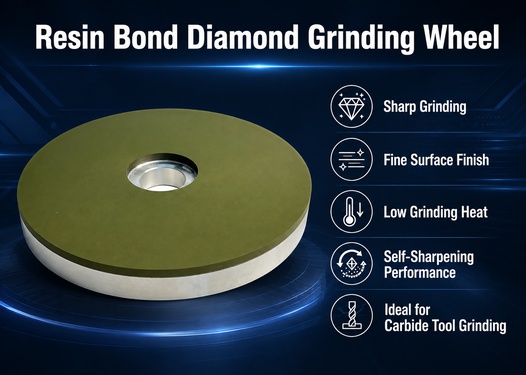

Resin Bond Features:

Sharp cutting and high grinding efficiency
Good self-sharpening performance
Low grinding heat and reduced workpiece burn
Excellent surface finish and dimensional accuracy
Low vibration and stable grinding performance
Easy dressing and profile correction
Available in customized shapes and specifications

Get a Quote

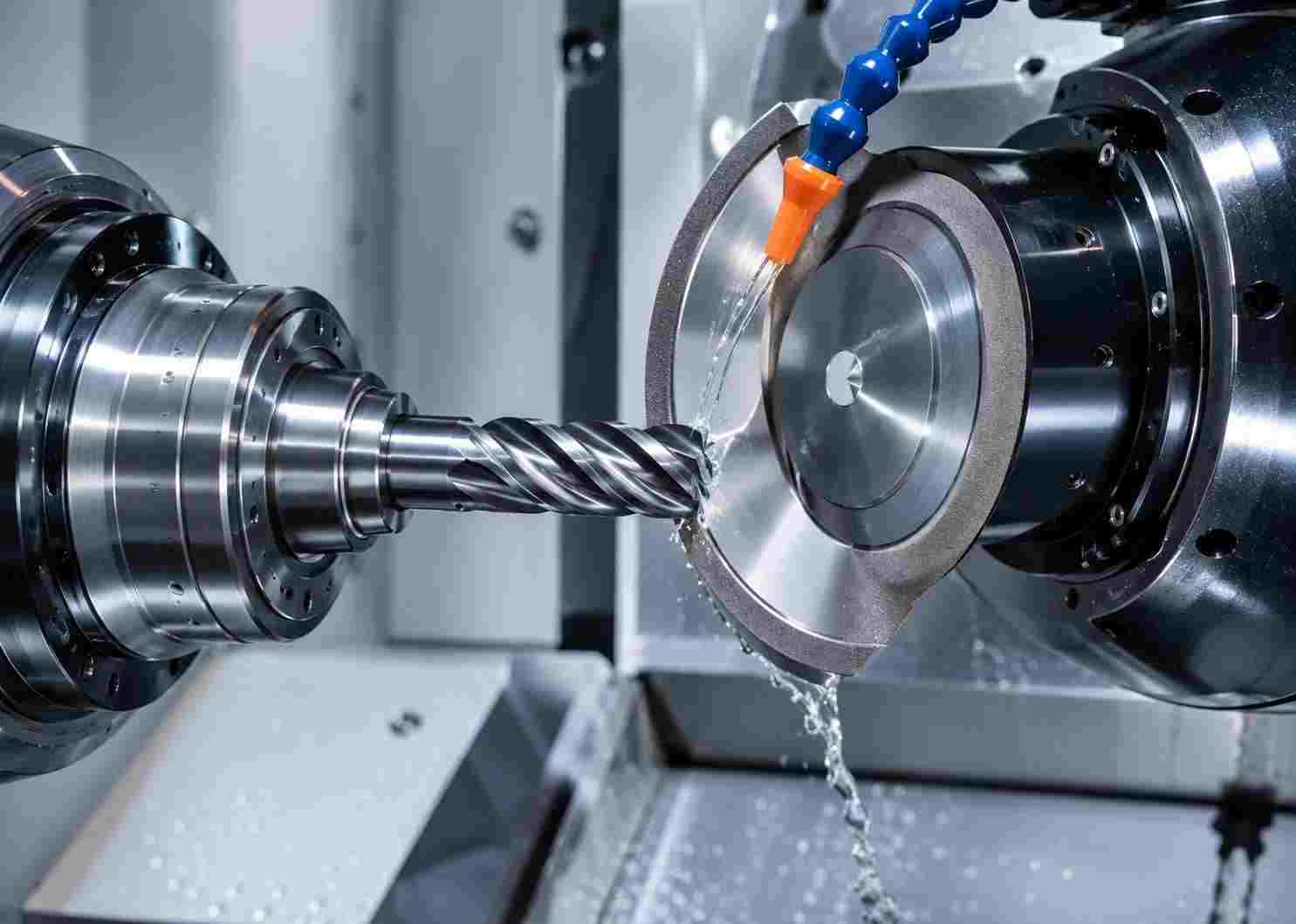

Application:

Resin bond diamond and CBN grinding wheels are widely used for precision grinding, sharpening and finishing.Resin bond diamond and CBN grinding wheels are widely used for:

* Tungsten carbide tools and inserts
* PCD and PCBN cutting tools
* Hardened steel and high-speed steel
* Technical ceramics and optical glass
* Carbide saw blades and woodworking tools
* Automotive and precision mechanical components
* Surface, cylindrical, internal and profile grinding

Get a Quote

Specifications:

Dimensions
D		T		H	X	W	Grit
(mm)	Inch"	(mm)	Inch"	H	X	W	Grit
50–1000	2"–39.5"	2–50.8	0.08–2"	TO YOUR REQUEST	2–38mm	2–38mm	2–38mm
Any non-standard size and grit can be customized. Please provide the required size or drawing.

General Diamond CBN Grinding Wheels Drawings

1A1
3A1
14A1
1A8
1A1R
2A2
4A2
4AA2
